■ Machine Introduction

The machine body adopts a table type structure and high strength cast iron to ensure the high rigidity of the machine tool. The three-axis adopts linear guide rail, equipped with special CNC system for Guangzhou CNC milling machine, bus servo unit, servo motor of absolute encoder and bamboo hat type tool magazine with high precision and reliable performance. Three-axis linkage, capable of batch and efficient automatic processing of flat, inclined, groove, drilling, tapping and profiled parts.

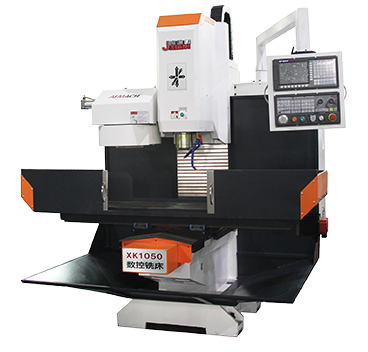

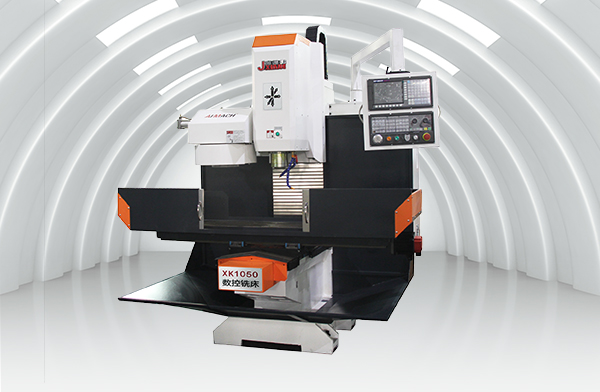

■  Product appearance

■ Machine Parameters

■ Advantages of Machine Tools

1. The machine tool adopts a table structure, and the body casting is made of high-quality Mihanna cast iron. After artificial aging treatment, it has high rigidity, small deformation and good stability.

2. Three-axis linear guide rail adopts domestic famous brands, with stable and reliable quality and lasting accuracy.

3. The numerical control system adopts the special bus numerical control system for milling machines, equipped with 23bit absolute value servo motor, with high accuracy, complete functions and convenient operation.

4. Equipped with a 12-position bamboo hat tool library, it can meet the processing of various types of parts and improve the processing efficiency.

5. Equipped with BT40 high-precision and high-speed spindle.

6. Fully enclosed sheet metal can ensure the safety of operation and effectively prevent the splash of cutting fluid.

7. The manufacturing process of the machine tool shall be inspected in strict accordance with the inspection procedure to ensure that the machine tool has good accuracy stability and processing reliability.

■ Introduction of Main Components

1. Bed part

The machine tool adopts a table type structure, and uses high-grade Mihanna cast iron. After artificial aging treatment, the rigidity and stability of the machine body are effectively improved. The worktable is hardened with high frequency and then ground with precision, which has good hardness and precision. Three-axis rail ball screw adopts domestic famous brands, with stable quality and high precision, to ensure stable and reliable high-speed operation and stable and reliable processing benchmark. Equipped with 12 bamboo hat type tool libraries, the performance is stable and reliable, which can meet the requirements of university processing of various types of parts. The numerical control system can easily adjust the start and stop time of the automatic oil supply lubrication system to ensure the effective lubrication of the machine tool while saving energy and reducing consumption. The BT40 spindle adopts high-precision bearings to ensure high rotation accuracy.

2. CNC system

The system adopts GSK980MDi milling machine special bus numerical control system with high control accuracy (minimum control 0.1 μ m) , moving fast. Equipped with bus servo unit and absolute servo motor, it supports online configuration of servo parameters, real-time monitoring of servo status, and mechanical return to zero without stop. Equipped with bus-type spindle servo unit, it can realize spindle orientation, rigid tapping and other expansion functions. It is equipped with 8.4 inch LCD display screen, which supports Chinese, English, Russian and other languages. It has 16 soft function keys in two rows, which is convenient to operate. The system supports U disk file operation, U disk files are processed directly, and the system software U disk is upgraded.

■ Machine Tool Working Environment

Ambient temperature: within the range of 5 ℃~40 ℃, and the average temperature in 24h shall not exceed 35 ℃.

Relative humidity: within the range of 30%~95%, and the principle of humidity change is that it should not cause condensation.

Altitude: below 1000m.

Atmosphere: no excessive dust, acid gas, corrosive gas and salt.

Installation position: keep away from vibration sources, inflammable and explosive materials, and avoid the change of ambient temperature caused by direct sunlight or heat radiation on the machine tool.

■ Standard accessories and special accessories

Special accessories:

1. Press plate (iron) 2. vise 3. collet
